3-Point Lock Installation & Repair

Expert 3-Point Lock Installation in Milwaukee and Waukesha County

A quality entry door deserves hardware that holds it tight at multiple points. Many Milwaukee homes with security doors, French doors, or upgraded entries use a 3-point lock, and that mechanism can wear or stop throwing its bolts over time. If you need 3-point lock installation, service, or advice on repair versus replacement, Affordable Locksmith LLC can assess the door and explain your options. We bring mobile locksmith service across Milwaukee and Waukesha County to your home. Mike McNew, a Milwaukee native and Certified Master Locksmith, has worked on this hardware for decades.

What Is a 3-Point Lock System?

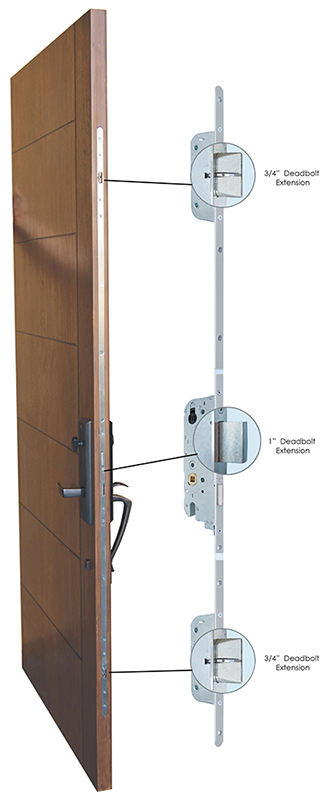

Courtesy of HMI Doors: Diagram of a 3-point lock system on a wood door.

A 3-point lock secures the door at three points along its edge, rather than at one. The central lock body holds the main 1-inch deadbolt, and when the deadbolt is locked, it automatically activates the bolts in the top and bottom locks, forming a 3-deadbolt locking system. Manufacturer references, such as HMI Doors, describe the same setup: a stainless-steel strip running the full length of the door’s edge, with lock bolts at the top and bottom.

Types of 3-Point Locks

Not every 3-point lock engages the same way. Many security and entry doors are key-activated, so turning the key throws all three points together. Others are lift-to-lock, where you raise the handle to set the top and bottom points, then turn the key to hold them in place. The points range from solid bolts to hooks that grab the strike and rollers that pull the door snug. We identify your type during the visit so the right part is used.

Is a 3-Point Lock the Same as a Mortise Lock?

The honest answer sits in the middle. A 3-point lock is a multipoint lock with a mortise-style lock body, so the lock body sits in a pocket cut into the door edge. A standard mortise lock secures at a single point, while a 3-point system distributes the locking action across the top, middle, and bottom of the door. Reference material from the Reeb Learning Center separates cylindrical, mortise, and multipoint hardware for that reason. The lock body is mortised in, but the system itself is a multipoint lock.

Why Milwaukee Homeowners Choose 3-Point Locks

The main reason is force distribution. A single deadbolt resists a kick at one spot, while three points share that pressure across the door. The locking points also pull the door tight against the weatherstripping, which helps in winter.

• Stronger resistance to forced entry across the full door
• A tighter seal that reduces drafts and helps hold heat
• Steadier door alignment that limits sag and binding
• A clean fit for security doors, French doors, and tall slabs

3 Point Lock Installation: What to Expect

Good results start with the door, and to ensure your new lock system works perfectly, we follow these quality control steps on all our 3-point lock installation jobs:

• We inspect the slab, frame, and strike locations.
• We confirm the door can hold a multipoint lock.
• We fit the lock body, connecting rods, and strikes.
• We test that all three points lock and release.

These visits are appointment-based and mobile. The work ties into our broader lock installation and repair, and our residential locksmith service.

Signs Your 3-Point Lock Needs Service

A 3-point lock usually warns you before it fails. Early signs often mean a simple repair, not a new mechanism.

• The handle is hard to lift, or the key will not turn all the way
• The door does not pull in tight, and you feel a draft at the top or bottom
• Only the center point throws, while the top or bottom bolt stays put
• The door has dropped on its hinges, so the bolts miss the strikes

If you notice any of these issues, don’t force the handle and have the lock checked. Forcing a binding mechanism can snap a connecting rod or strip the gear inside.

When Replacement Is Costly: Repair and Lower-Cost Options

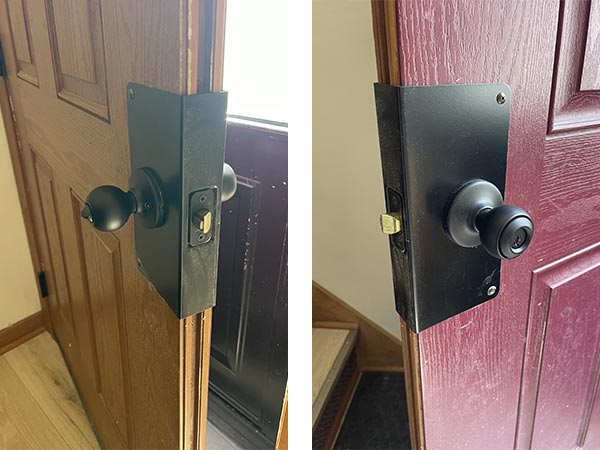

If you don’t have the budget to repair or replace the 3-point lock system, we have a solution! As shown in these two recent examples, we can replace the old 3-point lock system with a single doorknob lock and a wrap plate.

Replacement parts for multipoint locks can be expensive, and some are discontinued or back-ordered. One Milwaukee homeowner kept a customized front door lock they assumed was beyond saving, after Mike repaired it in a single visit. We look at the failed part first and tell you what is realistic.

• Repair the lock body or replace a worn internal part
• Find a matching replacement mechanism if one is still made
• Add an extra deadbolt that meets local code, where the door allows it
• Keep any fire-rated or warrantied door compliant before work begins

On a rated or warrantied door, removing the factory mechanism can void coverage, so we flag that first. For a lower-cost path, see our guide on adding a deadbolt and our notes on the signs a lock needs repair or replacement.

Keeping a 3-Point Lock Working in Wisconsin Weather

Wisconsin weather works against door hardware. Humid summers swell a wood door and cold winters shrink it, so bolts that lined up in spring can bind by fall. Hinges also loosen over time, so the door settles and the points miss the strikes. Keep the hinge screws tight, clear debris from the strike pockets, and use a dry lubricant rather than heavy oil that collects grit. When the door drags or a point catches, an alignment visit usually sets things right.

Schedule Your 3 Point Lock Installation or Repair Today

Affordable Locksmith LLC has served Milwaukee and Waukesha County since 1995 with honest recommendations and fair pricing, backed by more than 45,000 service calls. For a new 3-point lock, a repair, or a lower-cost option, we look at the door and recommend the right fix. Contact Affordable Locksmith LLC today to schedule a mobile service appointment and tell us your door type and lock issue.
